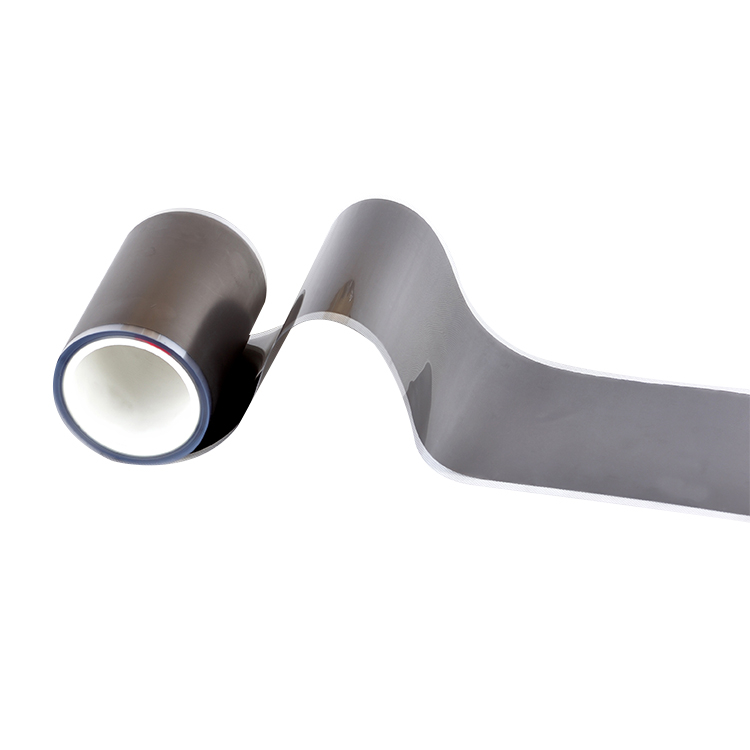

UHTD GRAPHITE SHEET

Raw material suppliers jointly develop and continuously upgrade graphite production technology.
► UHTD graphite sheets' PI optimization : Induce the formation of graphite orientation , and significantly increase the size and degree of graphitization of graphite single crystals.(FROM TIME HUASAN)
► UHTD graphite sheets' graphitization process optimization : The three-dimensional layered structure of PI film treated with high-temperature graphitization is more developed and complete, and the degree of preferred orientation and graphitization is greatly improved.
Availability:
Quantity:
  • DSN5000UHTD

  • DSN

Product Description


Item No.DSN5065UHTDDSN5070UHTDDSN5085UHTDDSN5100UHTD
Thickness (um)65 ± 670 ± 785 ± 9100 ± 10
Thermal conductivity (w/m.k)X-Y axis≥1800≥1700≥1700≥1500
Density (g/cm³) ≥2.1≥2.1≥2.10≥1.90
Heat capacity (J/g/K) 0.850.850.850.85
Working temperature (℃) -40~400-40~400-40~400-40~400
Bending times (angle 180, R5)20000200002000020000
Thermal capability≥117,000≥119,000≥144,500≥150,000
