DSN5000 series
DSN
Product Description
 |  |

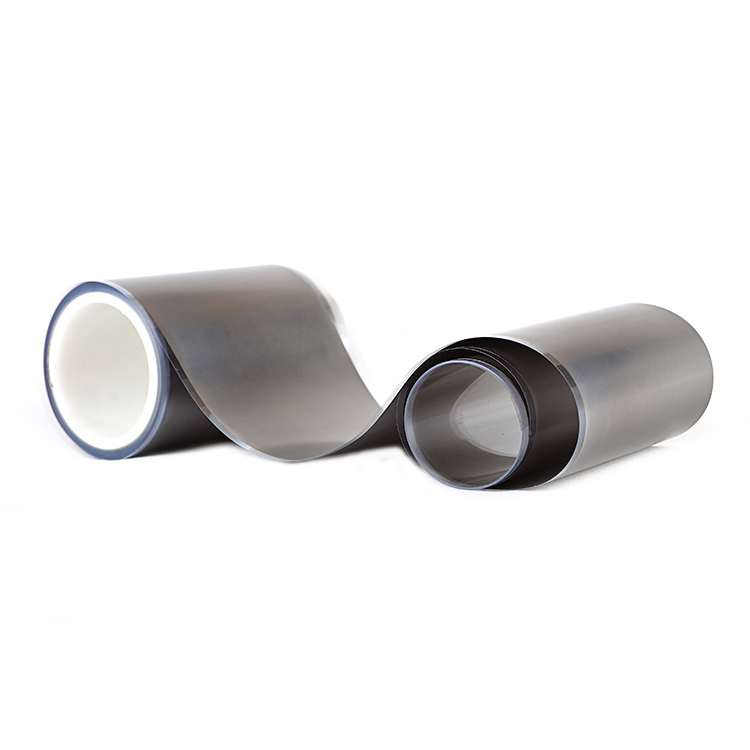

Synthetic graphite sheet, also called artificial graphite sheet, is a new film material made of Polyimide by sintering. DASEN is a professional graphite sheet manufacturer with capacity of 500,000SQM/Month and 6000 square meters dust-free workshop. DASEN is Samsung's strategic partner for thermal management. DuPont, SKC & KANEKA are DASEN’s strategic partners as Polyimide raw materials suppliers.
| |
| Item No. | DSN5017 17um | DSN5025 25um | DSN5032 32um | DSN5040 40um | |
| Thickness (um) | 17±3 | 25±3 | 32±4 | 40±4 | |
| Thermal conductivit | X-Y axis (w/m.k) | 1600~1800 | 1500~1700 | 1400~1600 | 1300~1500 |
| In-plane thermal diffusivity(mm²/s) | 940~1060 | 880~1000 | 860~990 | 850~980 | |
| Density (g/cm³) | 2.00±0.1 | 2.00±0.1 | 1.90±0.1 | 1.80±0.1 | |
| Heat capacity (J/g/K) | 0.850±0.01 | 0.850±0.01 | 0.850±0.01 | 0.85±0.01 | |
| Operation temperature (℃) | -40~400 | -40~400 | -40~400 | -40~400 | |
| Conductivity (s/m) | 3.49 x 107 | 2.46 x 107 | 1.49 x 107 | 1.38 x 107 | |
| Bending (angle180, R2) | 50000 | 50000 | 50000 | 30000 | |
| Remark: Above thermal conductivity was tested by third-party testing organization (Netzsch, Germany) according to the laser scattering. Heat-resistance temperature is the graphite sheet excluding PET film. | |||||
| Item No. | DSN5050 50um | DSN5070 70um | DSN5100 100um | |
| Thickness (um) | 50±5 | 70±7 | 100±10 | |
| Thermal conductivity | X-Y axis (w/m.k) | 1100~1300 | 1100~1300 | 900~1100 |
| In-plane thermal diffusivity(mm²/s) | 760~900 | 760~900 | 750~920 | |
| Density (g/cm³) | 1.70±0.1 | 1.70±0.1 | 1.40±0.1 | |
| Heat capacity (J/g/K) | 0.850±0.01 | 0.850±0.01 | 0.850±0.01 | |
| Conductivity (s/m) | --- | 7.43 x 106 | 5.41 x 106 | |
| Operation temperature (℃) | -40~400 | -40~400 | -40~400 | |
| Bending (angle180, R5) | 20000 | 20000 | 20000 | |
Remark: Above Thermal conductivity test by third-party testing organization (Netzsch, Germany) according to the laser scattering. Heat-resistance temperature is bare graphite sheet only excluding PET film. | ||||
