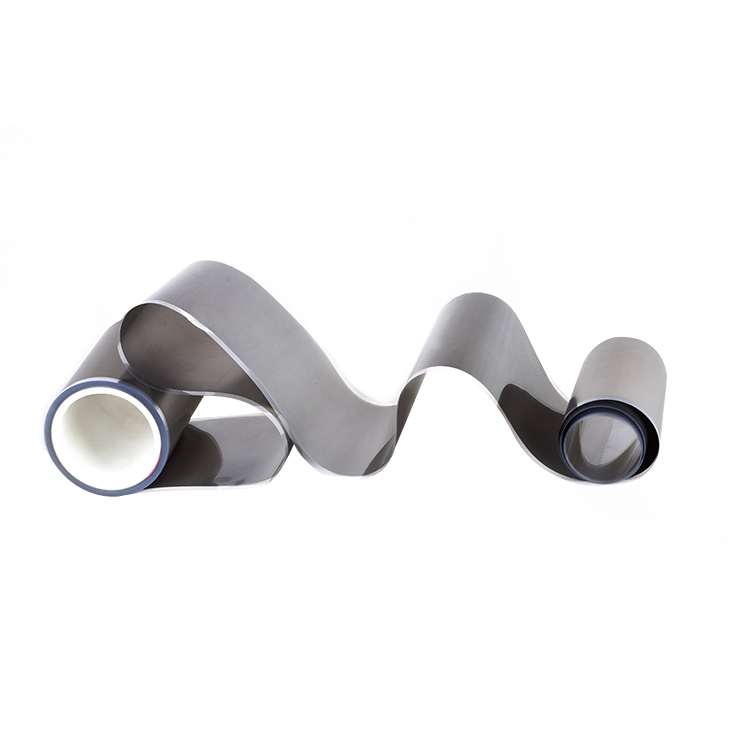

DSN5000HTD
DSN
Product Description
| Item No. | DSN501 7HTD | DSN5025 HTD | DSN5032 HTD | DSN5040 HTD | DSN5050 HTD | DSN5070 HTD | DSN5100 HTD | |
| Thickness (um) | 17 ± 3 | 25 ± 3 | 32 ± 4 | 40 ± 4 | 50 ± 5 | 70 ± 7 | 100 ± 10 | |
| Thermal conductivity (w/m.k) | X-Y axis | ≥1900 | ≥1800 | ≥1700 | ≥1700 | ≥1600 | ≥1500 | ≥1300 |
| Z axis | 10~15 | 10~15 | 10~15 | 10~15 | 15~20 | 15~20 | 15~20 | |
| Density (g/cm³) | ≥2.05 | ≥2.0 | ≥2.0 | ≥2.0 | ≥2.0 | ≥2.0 | ≥1.7 | |
| Heat capacity (J/g/K) | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | |
| Working temperature (℃) | -40~400 | -40~400 | -40~400 | -40~400 | -40~400 | -40~400 | -40~400 | |
| Bending times (angle 180, R2) | 50000 | 50000 | 50000 | 30000 | 20000 | 20000 | 20000 | |
| Thermal capability | ≥32,300 | ≥45,000 | ≥54,400 | ≥68,000 | ≥80,000 | ≥105,000 | ≥130,000 | |
